THUNDERBOLT 3 PCIE ENCLOSURE BOX
Description:
StarTech.com Thunderbolt 3 PCIe Expansion Chassis; External Enclosure with Dual PCI Express Slots
Features Include:

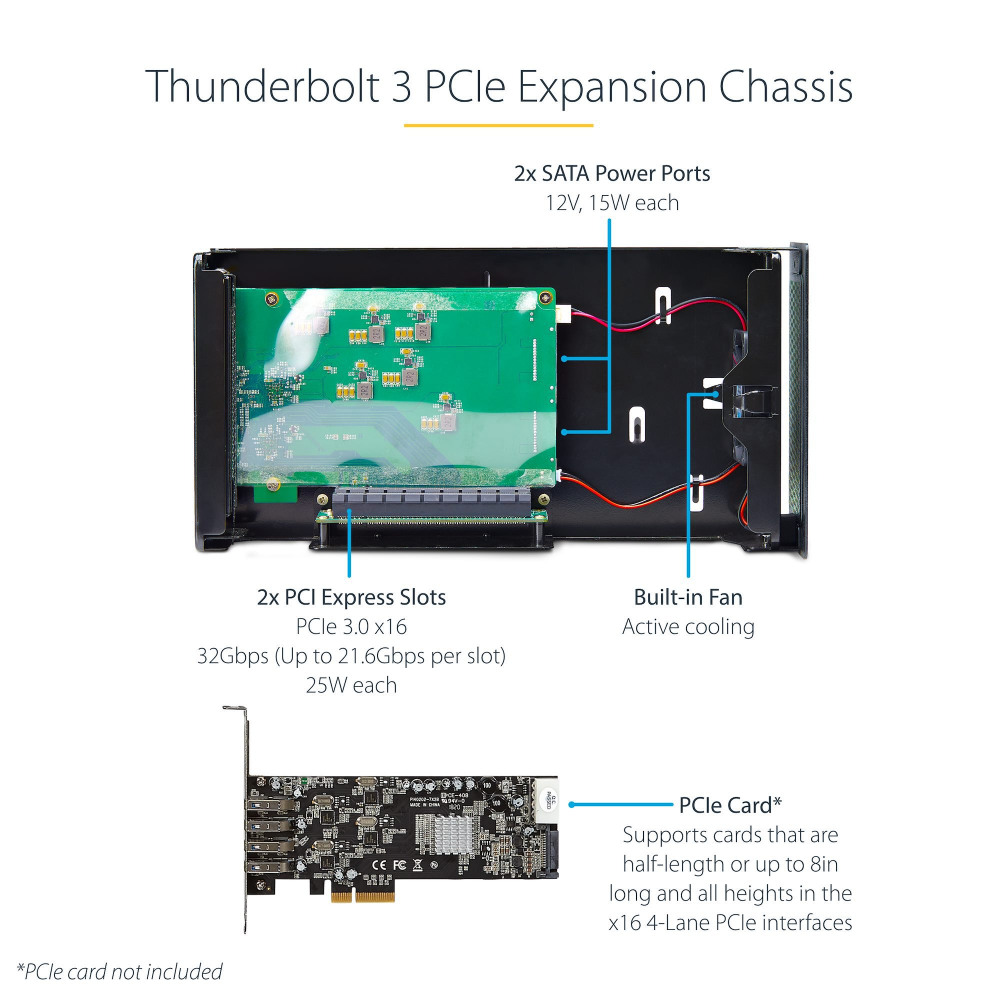

- THUNDERBOLT 3 PCIE EXPANSION CHASSIS: Add PCI Express support to a Thunderbolt 3/4 capable laptop/desktop computer; Dual external PCIe 3.0 x16 slots; 32Gbps of combined bandwidth (up to 21.6Gbps/2700MBps per slot); 3.3ft (1m) Thunderbolt cable included

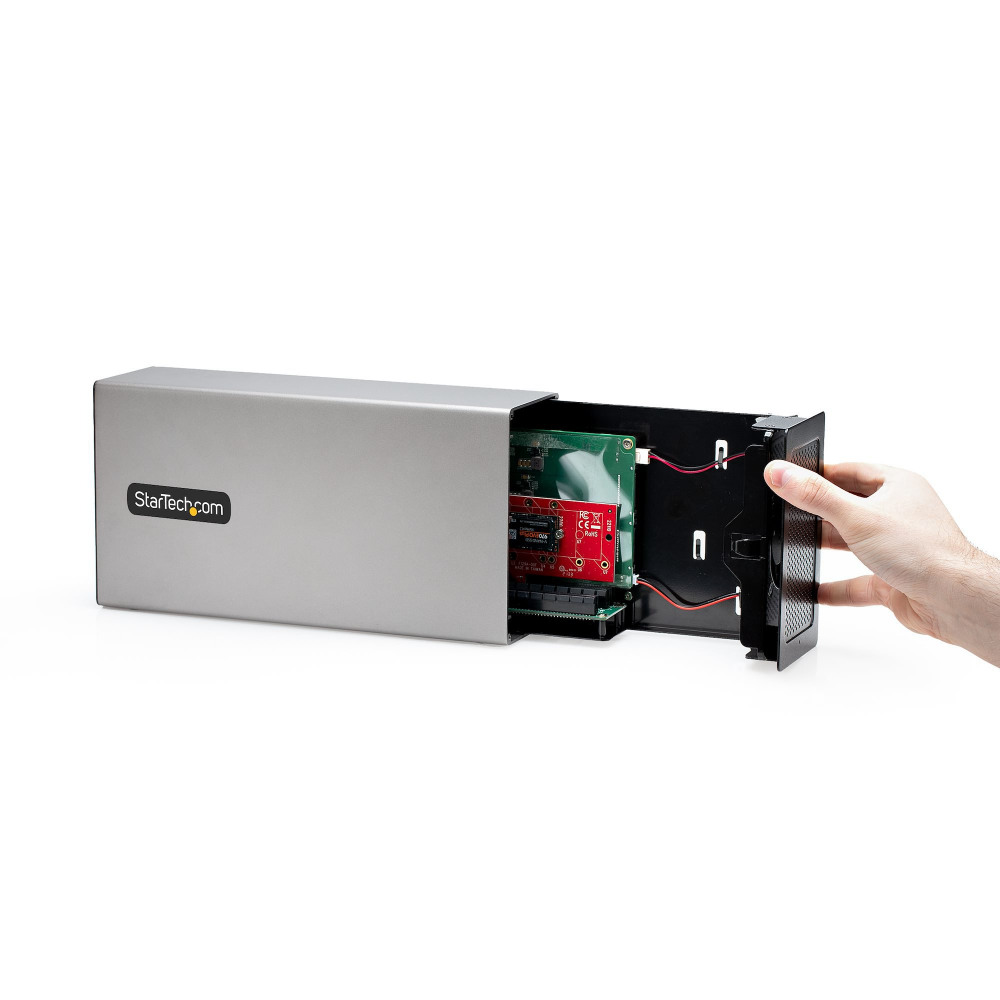

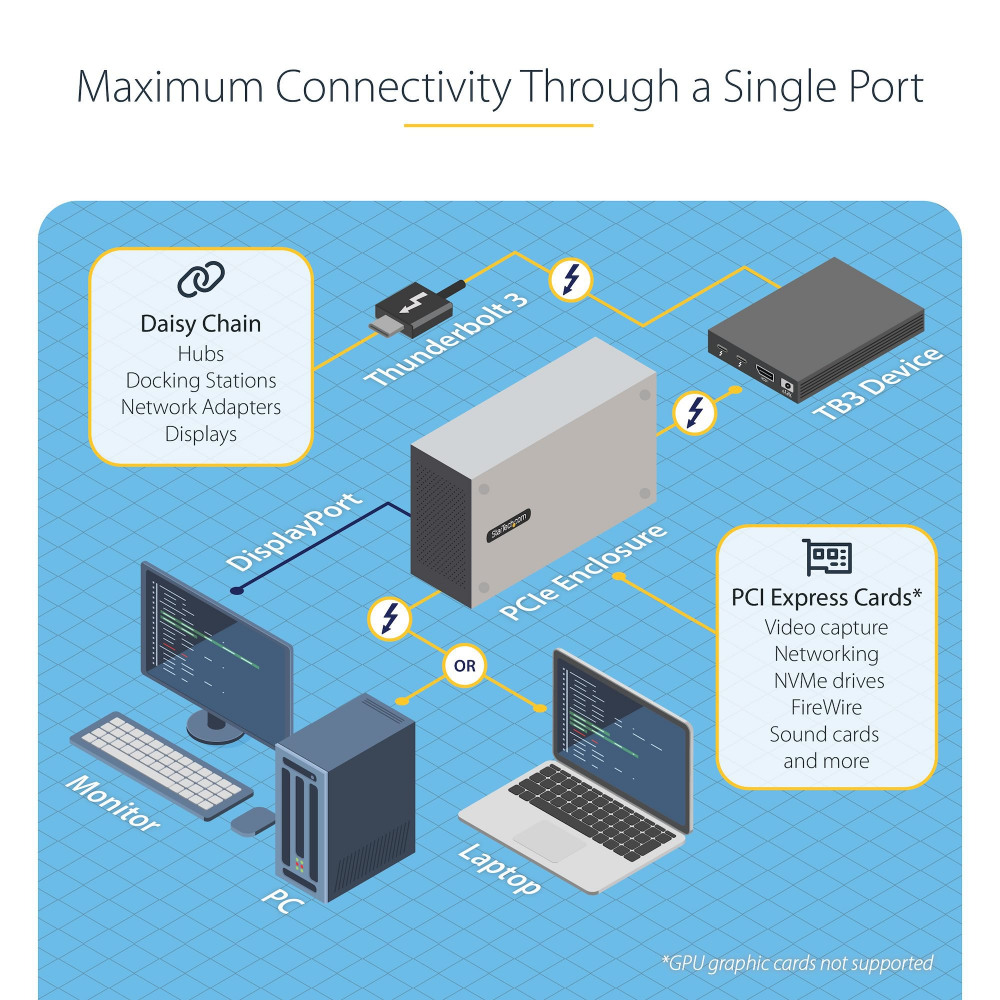

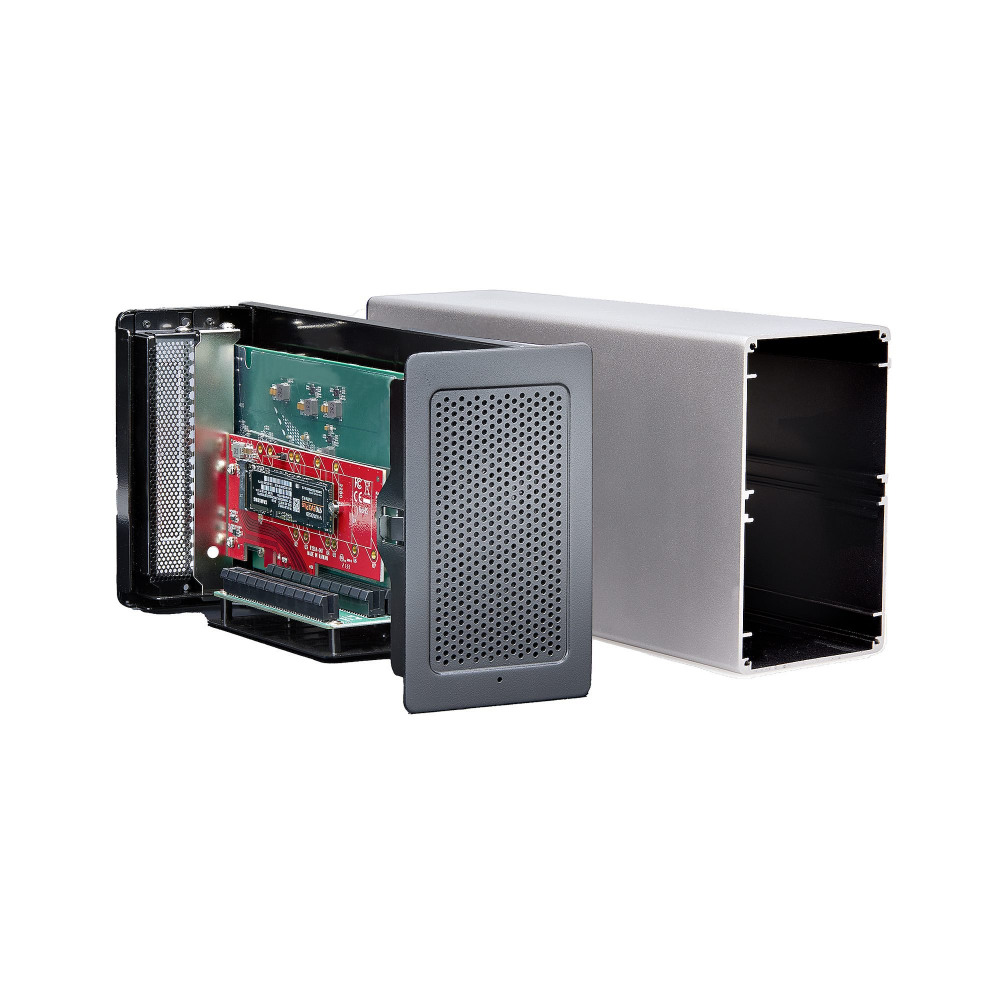

- EXPANDABILITY FOR LAPTOPS: Integrate video capture cards, high-speed fibre/Ethernet connectivity, NVMe drives, FireWire cards, and more to unlock the potential of a notebook using this Thunderbolt 3 to PCIe chassis; Toolless design; Aluminium construction
- 8K & 4K DISPLAY SUPPORT: Connect a display through the external PCIe enclosure; The DP 1.4 port and TB3 ports support video outputs up to 8K/5K 60Hz or dual 4K 60Hz (other video resolutions are also supported); PCIe box does not support GPU graphic cards
- ROBUST POWER: The chassis delivers 25W per PCIe slot and features dual internal 12V 15W SATA power ports for up to 40W per card; 12V 10A (120W) universal power adapter is included and is compatible with NA/JP, UK, EU, and ANZ regions
- COMPATIBILITY: Use single-width cards up to 8in (20.3cm) long; Built-in fan for active cooling; Daisy chain compatible with multiple TB3/4 devices; The chassis is driverless and is compatible with macOS, Windows; TAA-compliant
-
Product Code
8ST10414929
-
Description
StarTech.com Thunderbolt 3 PCIe Expansion Chassis; External Enclosure with Dual PCI Express Slots
-
Brand
StarTech.com
-
Capacity
3 Ports
-
Connector Type
2 - PCI Express x16
-
Dimensions
281x84x142mm
-
External Ports

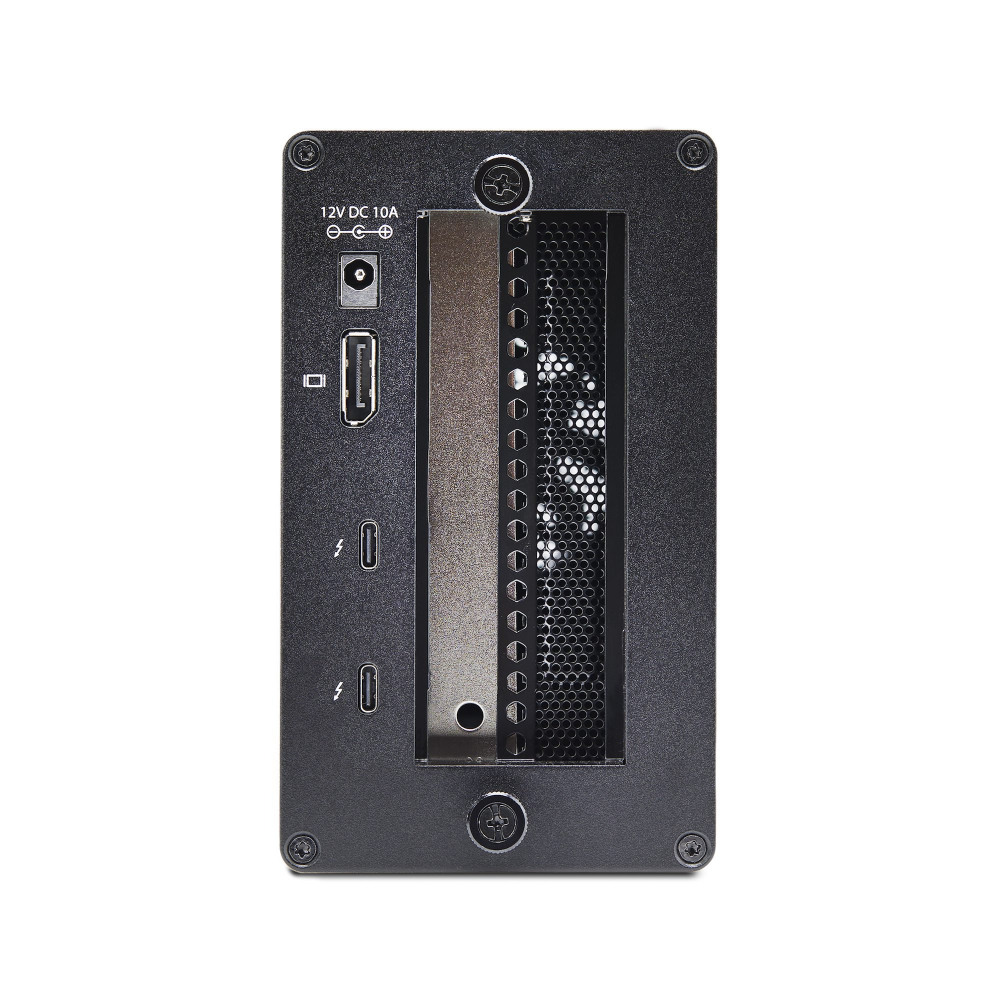

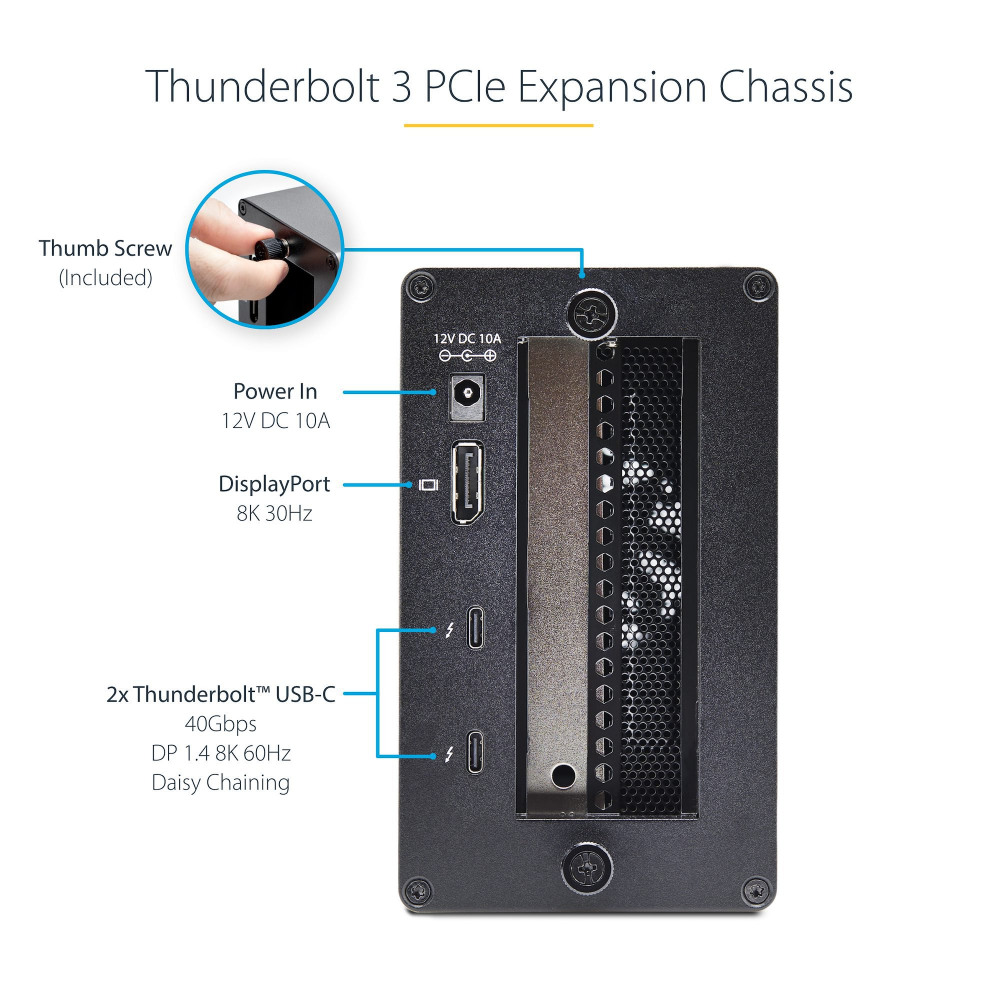

2 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps), 1 - DisplayPort (20 pin) Female
-
Form
Expansion Enclosure
-
Manufacturer
StarTech.com
-
Max Data Transfer Rate
40 Gbps (Thunderbolt 3)
-
Type
PCI Cards
-
Warranty
2 Year Warranty
-
Weight
1.6kg
